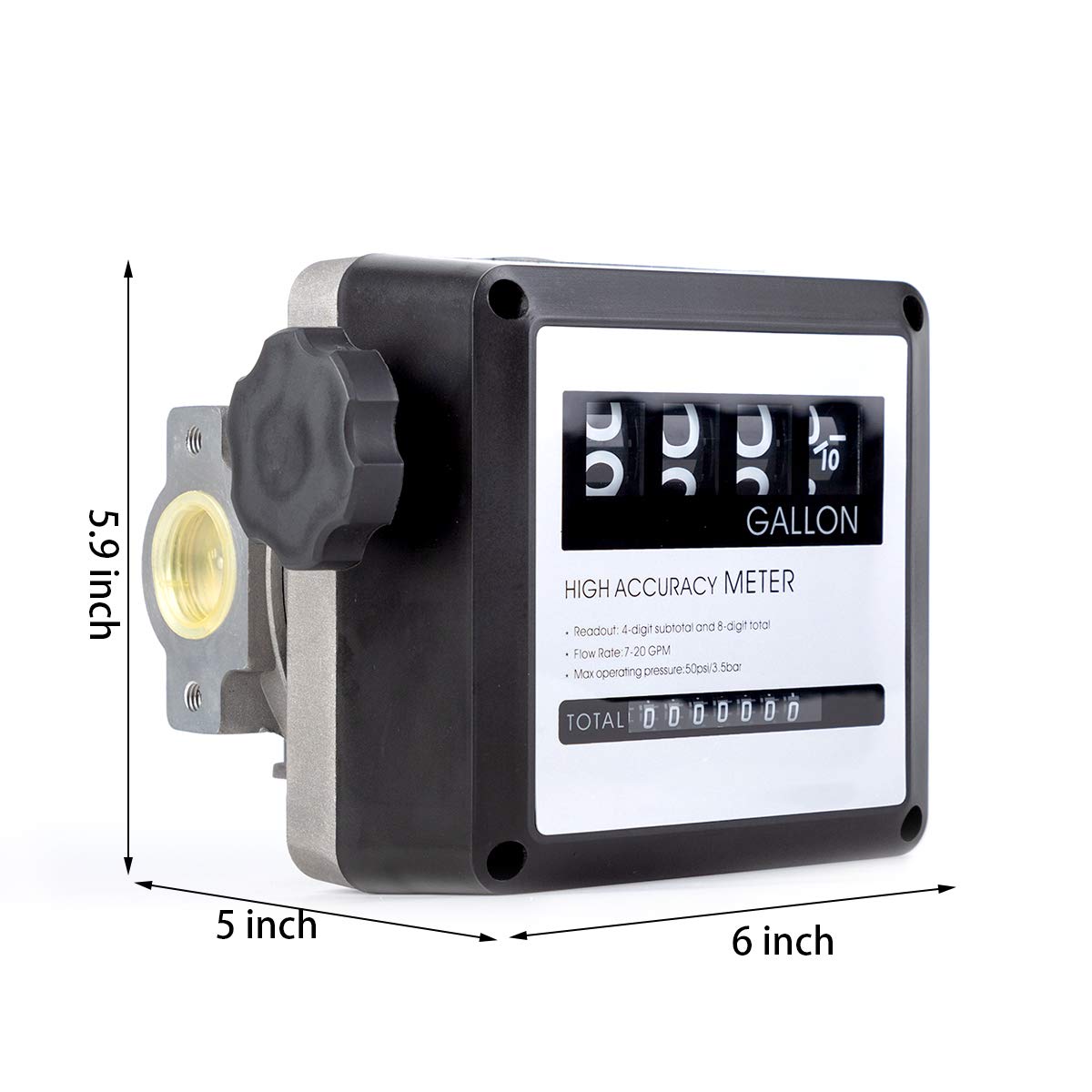

Aluminum Mechanical Fuel Transfer Meter 7 to 20 GPM 4-Digital Batch Display for All Fuel Transfer Pumps

Feature:This flow meter is suitable for non-commercial use in diesel, gasoline and kerosene metering.Mechanical flow meter with handwheel, the single cumulative number of liters can be manually returned to zero, the total accumulation can not be returned to zero. Batch total measures up to 999.9 gallons. Cumulative total measures up to 9,999,999.9 gallons.The instrument accuracy can be adjusted, the back screws can be removed, and the precision can be adjusted by adjusting the top wire table inside.Guaranteed for two years warranty.Specification:Flow range: 5-30/GPMAccuracy level: ±1%Nominal diameter (caliber): 1.0, 1.5, 2.0 inchApplicable medium: diesel, kerosene, gasolineProduct form: mechanicalPacking size: 270*200*175MMCounting method (number of digits): Four digits return to zero (0000-999.9L) Eight-digit accumulation (00000000-99999999)Shell material: aluminum alloyInstallation direction: vertical or horizontalWorking pressure: 0.04-0.1MpaMaximum working pressure: 50Psi/3.5BarBursting pressure: 400Psi/28BarWorking temperature: -10~50°CPackage Content:1 x Mechanical Fuel MeterAttentionThe flow rate may be deviated before leaving the factory. Please check the flow meter before using the goods to avoid affecting the measurement reading.The flow meter function will be tested before leaving the factory. The surface of the product may have some oil stains, which will not affect the use.

• 【Professional quality】- Aluminum alloy material], the details are implemented in every component each part. suitable for non-commercial use in diesel, gasoline and kerosene metering.
• 【Adjustable flow rate】- There is a special flow adjustment port, the amount of oil output when screwed to the left decreases, and the amount of oil output when screwed to the right increases.
• 【Precision measurement】- The mechanical gear rotates, the quality has undergone multiple inspections, and accurate measurement；4-digital subtatals, 8-digital totals, easy to read and install proofreading.
• 【Easy operation】- There is a special revolving wheel, and the flow can be cleared by turning the gear clockwise.
• 【Attention】- In the process of installing the oil gauge, please pay attention to the tightness of the interface. A gasket or raw tape is required to enhance the tightness.
